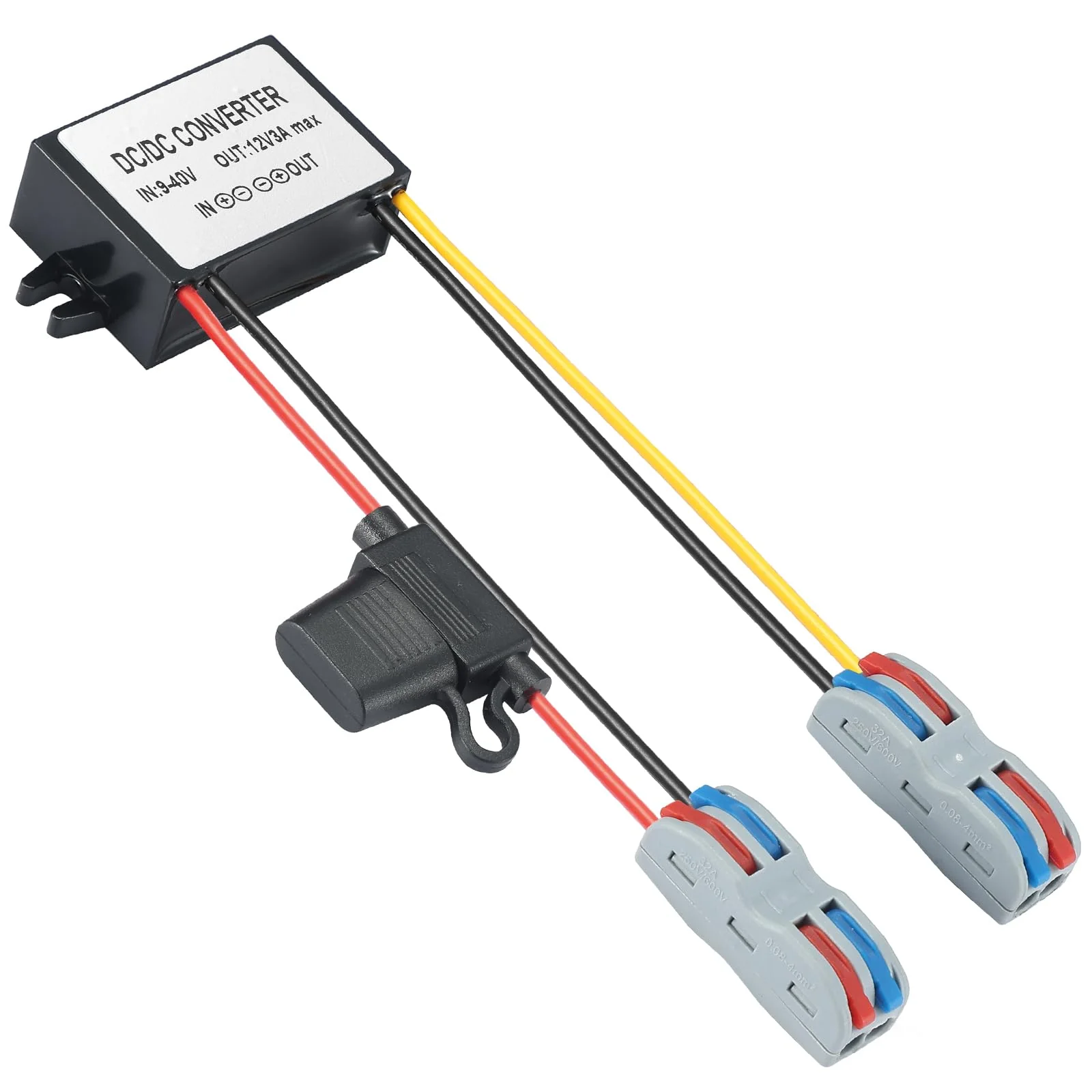

9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A
9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A
9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified)
DC 9-40V to 12V Step Down Converter parameters:Input parameterInput range： 9-40VRated input voltage：12/24VTransfer efficiency：95%Incoming line：15-16CM(R+ B-)Output voltage：12VOutput：3A MAXMaximumoutput：36W MAXNo-load adjustment rate：2%Load regulation：3%Quiescent dissipation：≤15MARipple wave：200mVP-PThe oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 μ F electrolytic capacitor and 0.1 μ F ceramic capacitor.Outlet line：13-14CM(Y+ B-) Enviromental Parameterworking temperature：-20-65°Storage temperature：-40-85°Working humidity：10%-90%RH Defencive functionclassification of waterproof：IP67 OtherWeight：0.62 lbSize：1.811.260.71 inchHeat dissipation method：natural heat dissipation Matters need Attention1.The products are stored in a dry and cool place with a temperature range of-40℃ ~80℃, and avoid contact with corrosive substances, and stay away from fire and heat sources.2. Do not use it near a heat source (such as a fire or a heater).3. Do not connect the input line to 220V electricity.4. Do not put the product into the fire or heat it.5. Do not short-circuit the positive or negative poles of the product with wires or other metal objects.6.Non-professional personnel are prohibited to disassemble and repair by themselves.
Product Features

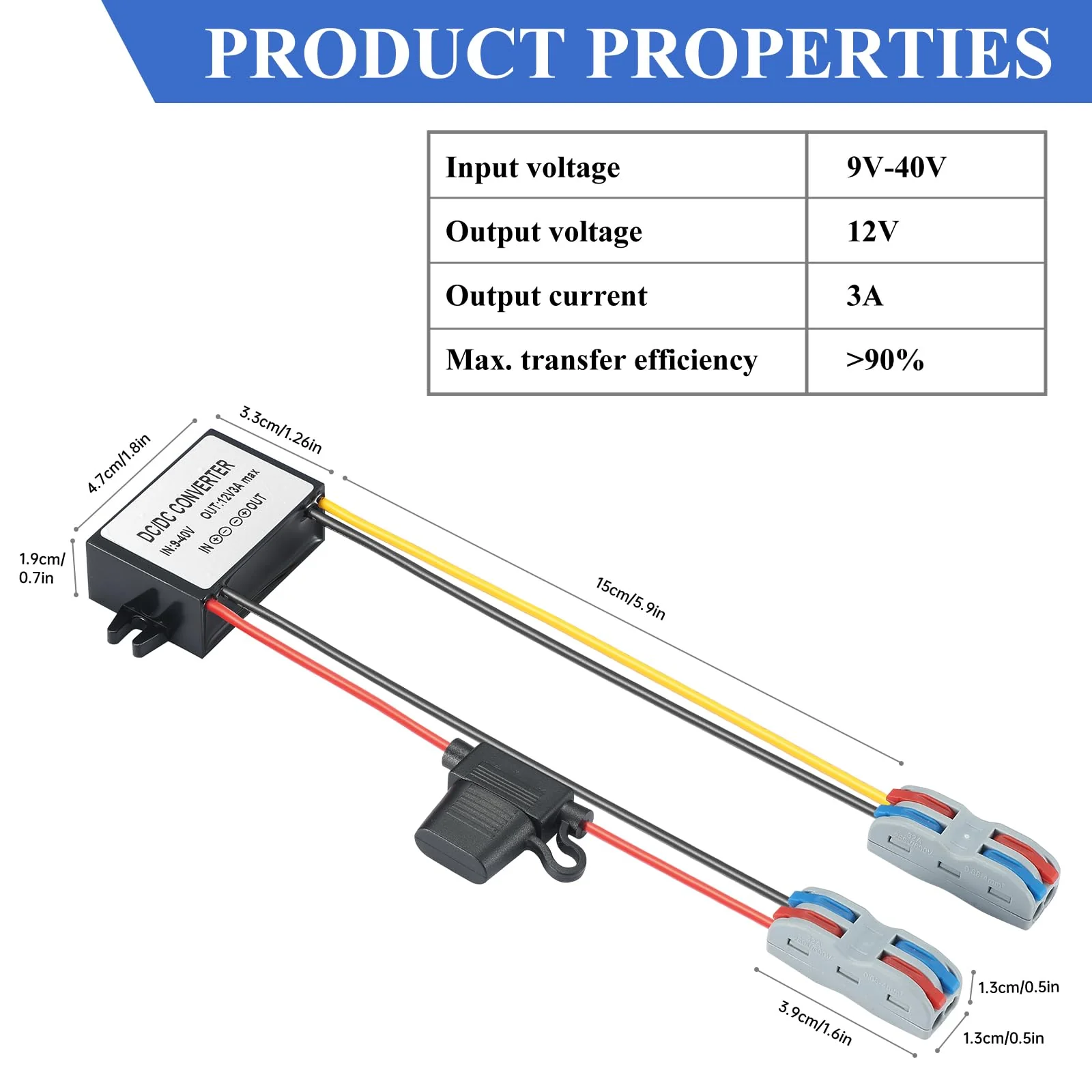

- Voltage Regulator Converter : Input voltage range: 9-40V; Rated input voltage: 12/24V; Output voltage: 12V; Output current: 3A MAX; Output power: 36W MAX.

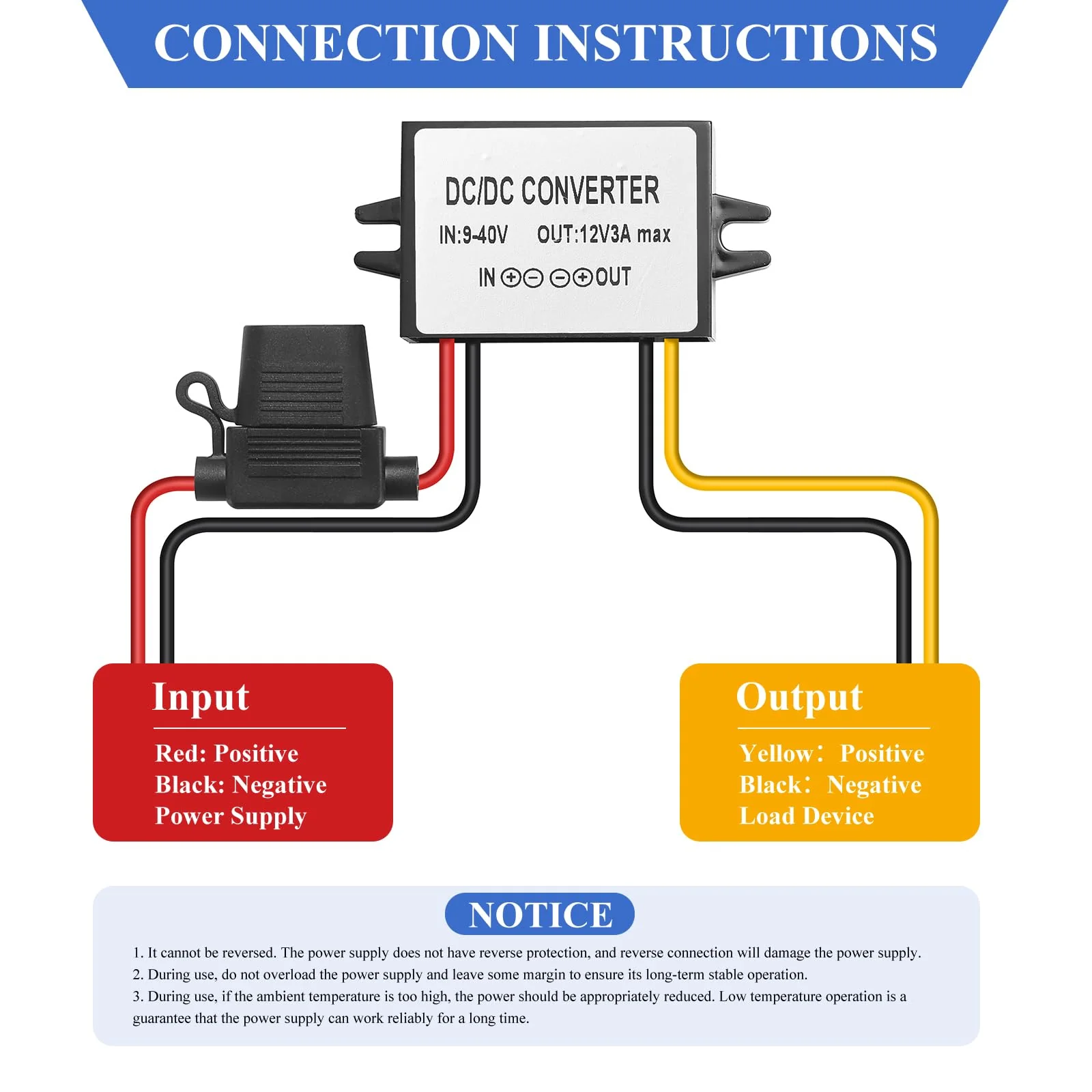

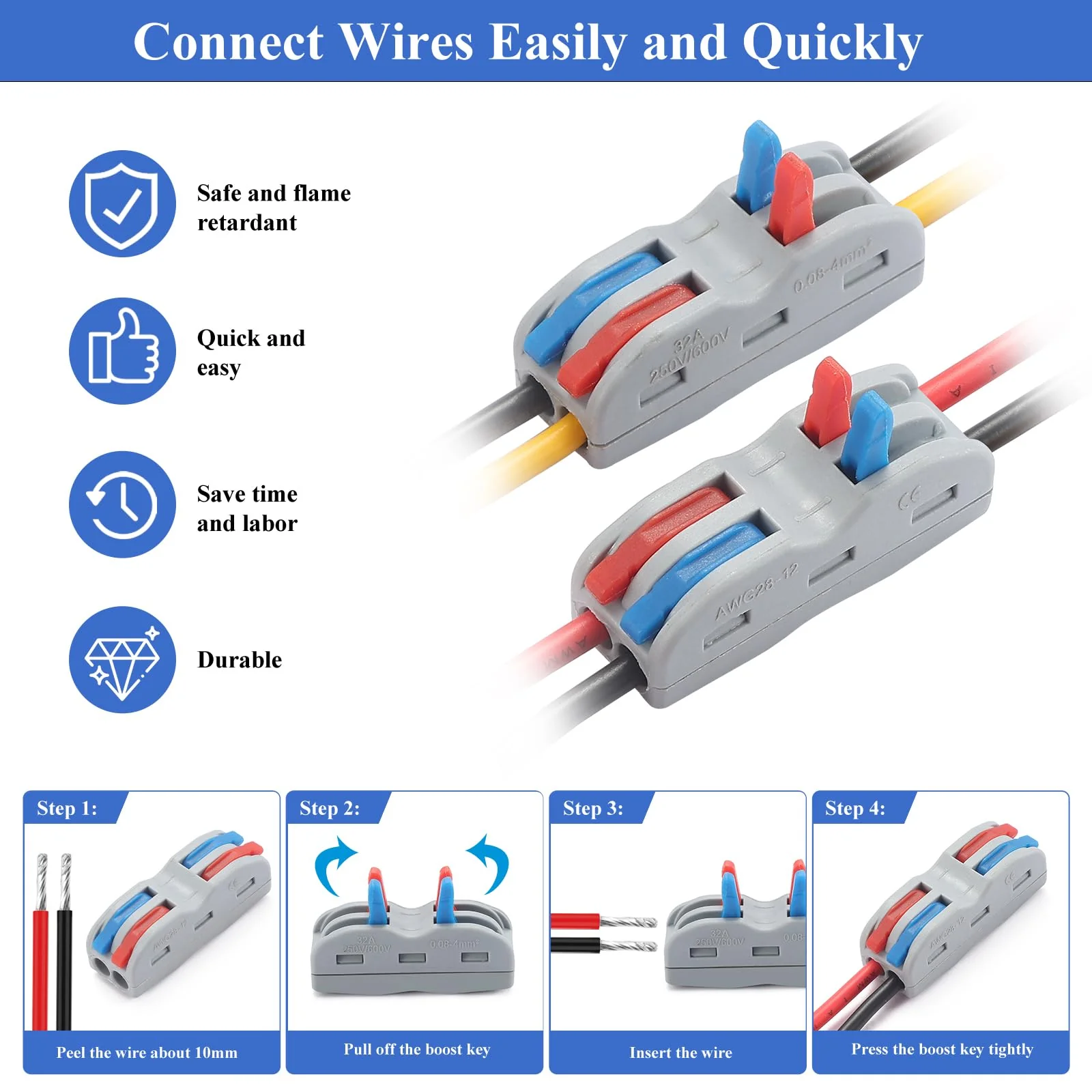

- Easy to Use : Strip the wires about 10 mm (0.4 inches) and insert them into the terminals. This voltage voltage regulator is equipped with a lever nut connection for quick connection. No wiring is required, reducing wiring time.

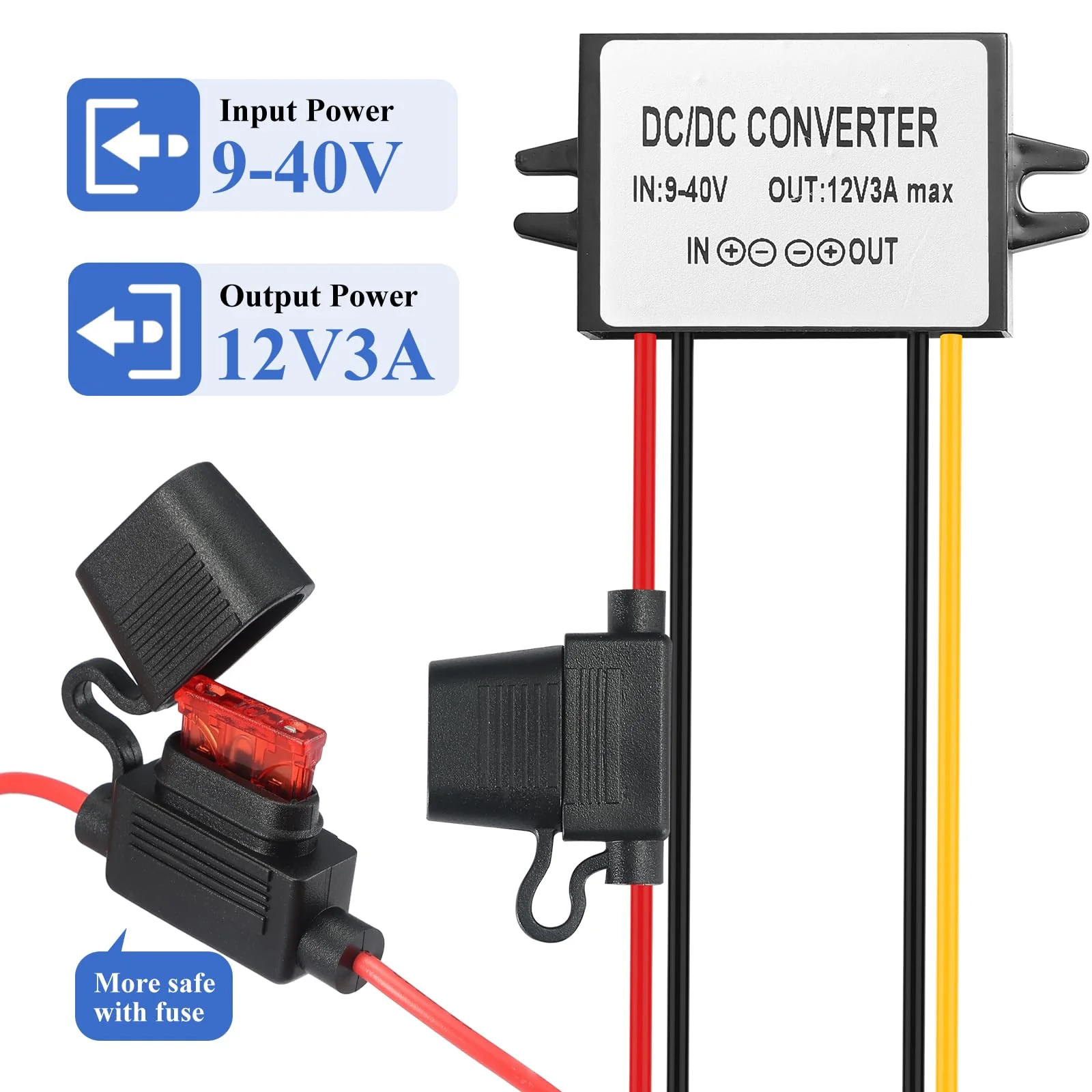

- Fuse Protection Function: The 9-40V to 12V3A voltage converter is equipped with over-current/short-circuit/over-temperature protection fuses to ensure good safety during conversion work.

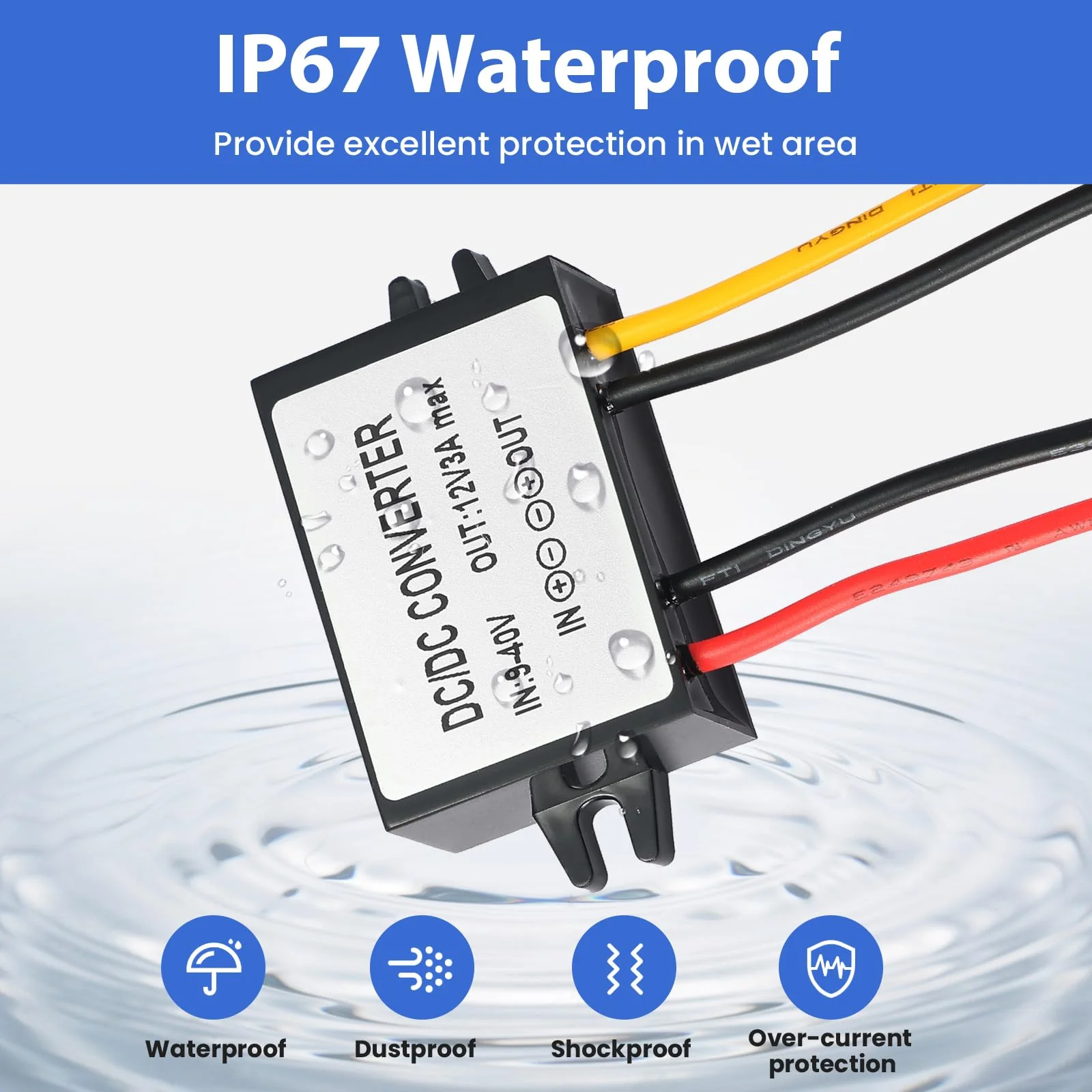

- IP67 Waterproof Function: The DC-DC transformer adopts non-isolated synchronous voltage converter technology and has IP67 waterproof function.
- Wide Range of Applications: DC-DC waterproof voltage converter is widely used in cars, trucks, surveillance systems, navigators, car recorders, advertising screens, medical equipment, instruments, LED strips, electric fans, DIY and other fields.
Original: $115.00
-65%$115.00
$40.25More Images
9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A
9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified)
DC 9-40V to 12V Step Down Converter parameters:Input parameterInput range： 9-40VRated input voltage：12/24VTransfer efficiency：95%Incoming line：15-16CM(R+ B-)Output voltage：12VOutput：3A MAXMaximumoutput：36W MAXNo-load adjustment rate：2%Load regulation：3%Quiescent dissipation：≤15MARipple wave：200mVP-PThe oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 μ F electrolytic capacitor and 0.1 μ F ceramic capacitor.Outlet line：13-14CM(Y+ B-) Enviromental Parameterworking temperature：-20-65°Storage temperature：-40-85°Working humidity：10%-90%RH Defencive functionclassification of waterproof：IP67 OtherWeight：0.62 lbSize：1.811.260.71 inchHeat dissipation method：natural heat dissipation Matters need Attention1.The products are stored in a dry and cool place with a temperature range of-40℃ ~80℃, and avoid contact with corrosive substances, and stay away from fire and heat sources.2. Do not use it near a heat source (such as a fire or a heater).3. Do not connect the input line to 220V electricity.4. Do not put the product into the fire or heat it.5. Do not short-circuit the positive or negative poles of the product with wires or other metal objects.6.Non-professional personnel are prohibited to disassemble and repair by themselves.
Product Features
- Voltage Regulator Converter : Input voltage range: 9-40V; Rated input voltage: 12/24V; Output voltage: 12V; Output current: 3A MAX; Output power: 36W MAX.
- Easy to Use : Strip the wires about 10 mm (0.4 inches) and insert them into the terminals. This voltage voltage regulator is equipped with a lever nut connection for quick connection. No wiring is required, reducing wiring time.
- Fuse Protection Function: The 9-40V to 12V3A voltage converter is equipped with over-current/short-circuit/over-temperature protection fuses to ensure good safety during conversion work.
- IP67 Waterproof Function: The DC-DC transformer adopts non-isolated synchronous voltage converter technology and has IP67 waterproof function.
- Wide Range of Applications: DC-DC waterproof voltage converter is widely used in cars, trucks, surveillance systems, navigators, car recorders, advertising screens, medical equipment, instruments, LED strips, electric fans, DIY and other fields.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified)
DC 9-40V to 12V Step Down Converter parameters:Input parameterInput range： 9-40VRated input voltage：12/24VTransfer efficiency：95%Incoming line：15-16CM(R+ B-)Output voltage：12VOutput：3A MAXMaximumoutput：36W MAXNo-load adjustment rate：2%Load regulation：3%Quiescent dissipation：≤15MARipple wave：200mVP-PThe oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 μ F electrolytic capacitor and 0.1 μ F ceramic capacitor.Outlet line：13-14CM(Y+ B-) Enviromental Parameterworking temperature：-20-65°Storage temperature：-40-85°Working humidity：10%-90%RH Defencive functionclassification of waterproof：IP67 OtherWeight：0.62 lbSize：1.811.260.71 inchHeat dissipation method：natural heat dissipation Matters need Attention1.The products are stored in a dry and cool place with a temperature range of-40℃ ~80℃, and avoid contact with corrosive substances, and stay away from fire and heat sources.2. Do not use it near a heat source (such as a fire or a heater).3. Do not connect the input line to 220V electricity.4. Do not put the product into the fire or heat it.5. Do not short-circuit the positive or negative poles of the product with wires or other metal objects.6.Non-professional personnel are prohibited to disassemble and repair by themselves.
Product Features
- Voltage Regulator Converter : Input voltage range: 9-40V; Rated input voltage: 12/24V; Output voltage: 12V; Output current: 3A MAX; Output power: 36W MAX.
- Easy to Use : Strip the wires about 10 mm (0.4 inches) and insert them into the terminals. This voltage voltage regulator is equipped with a lever nut connection for quick connection. No wiring is required, reducing wiring time.
- Fuse Protection Function: The 9-40V to 12V3A voltage converter is equipped with over-current/short-circuit/over-temperature protection fuses to ensure good safety during conversion work.
- IP67 Waterproof Function: The DC-DC transformer adopts non-isolated synchronous voltage converter technology and has IP67 waterproof function.
- Wide Range of Applications: DC-DC waterproof voltage converter is widely used in cars, trucks, surveillance systems, navigators, car recorders, advertising screens, medical equipment, instruments, LED strips, electric fans, DIY and other fields.
