DB44 Solderless Connector, Male RS232 D-SUB Serial to 44-pin Port Terminal Adapter Breakout Board with Case Long Bolts Tail Pipe
DB44 Solderless Connector, Male RS232 D-SUB Serial to 44-pin Port Terminal Adapter Breakout Board with Case Long Bolts Tail Pipe
DB44 Solderless Connector, Male RS232 D-SUB Serial to 44-pin Port Terminal Adapter Breakout Board with Case Long Bolts Tail Pipe

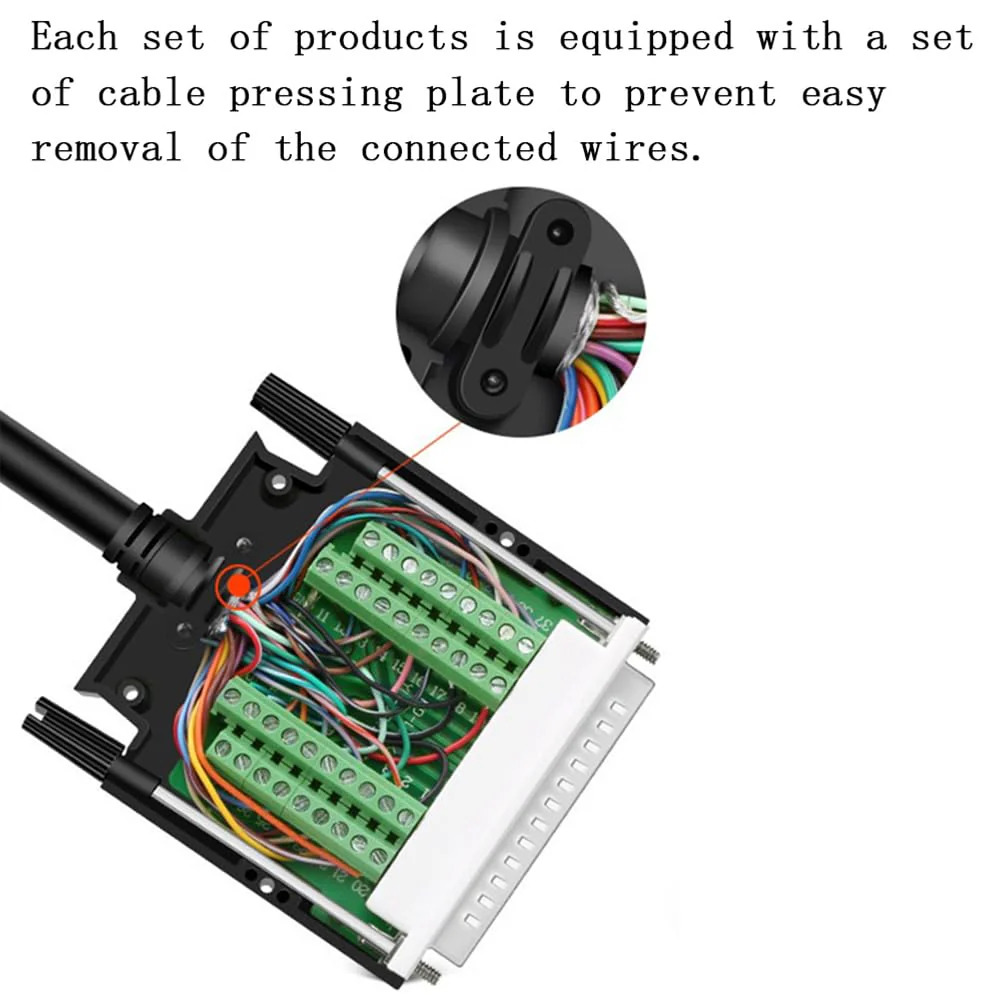

These DB44 Male Solderless Connectors are used to terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life. Technical Specifications: Name: DB44 solderless module Plug type: male Accessories: housing, screw, card line buckle Connector material: pure copper plated joint Contact Material: Copper Housing material: environmentally friendly PP engineering materials Shell type: Screw lock Opening size (cable port): 10.5mm/0.41″ Terminal block diameter: 0.08'' / 2mm Pin Pitch: 2.54mm/0.1inch Cable Specification: 28-20 AWG/0.15-0.5mm2 Strip length: 5-6mm Torque: 0.2Nm (1.7Lb-In.) Rated voltage: 24V Rated current: 2A Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc. Size: 82.3 mm×57.2 mm×20.4 mm/ 3.24″×2.25″×0.80″ Package includes: 1 x DB44 Male Solderless Connectors 1x cable pressing plate 2x Screws 2x Long bolts 1x 5mm tail pipe 1x 6mm tail pipe 1x 7.5mm tail pipe 1x 8.5mm tail pipe
Product Features

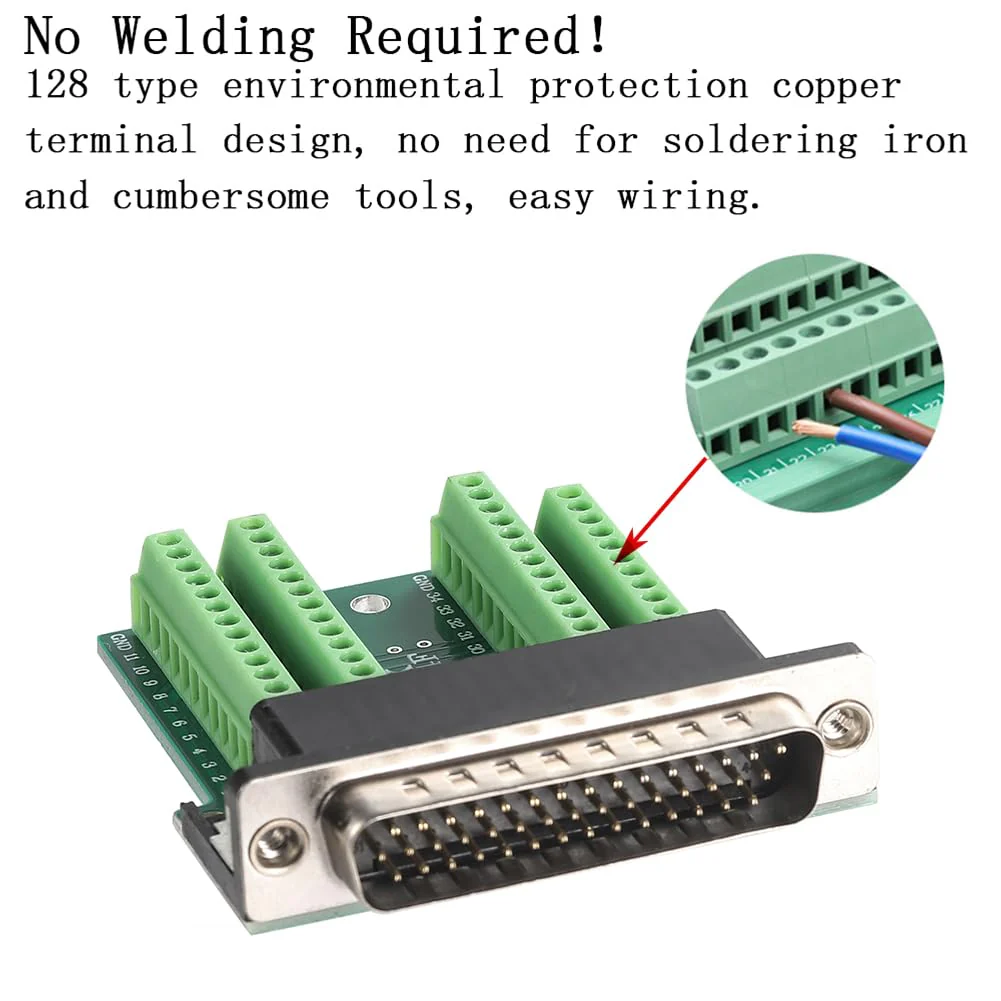

- No Welding Required: 128 type environmental protection copper terminal design, Solderless design allows for quick and tool-free connection of wires or cables, saving time and effort during assembly.

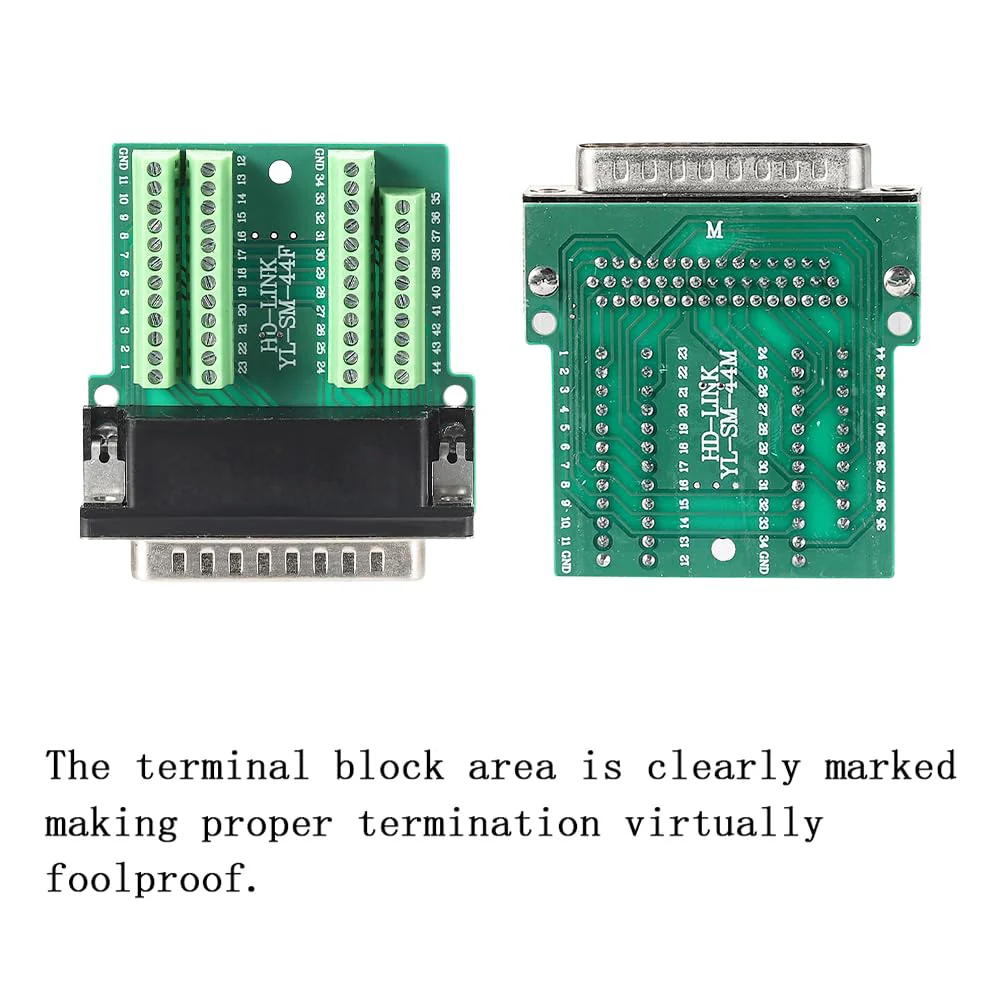

- REDUCE ERRORS: The terminal block area is clearly marked making proper termination virtually foolproof.
- Compatibility: Works with a range of devices and equipment requiring multiple connections in a single interface.

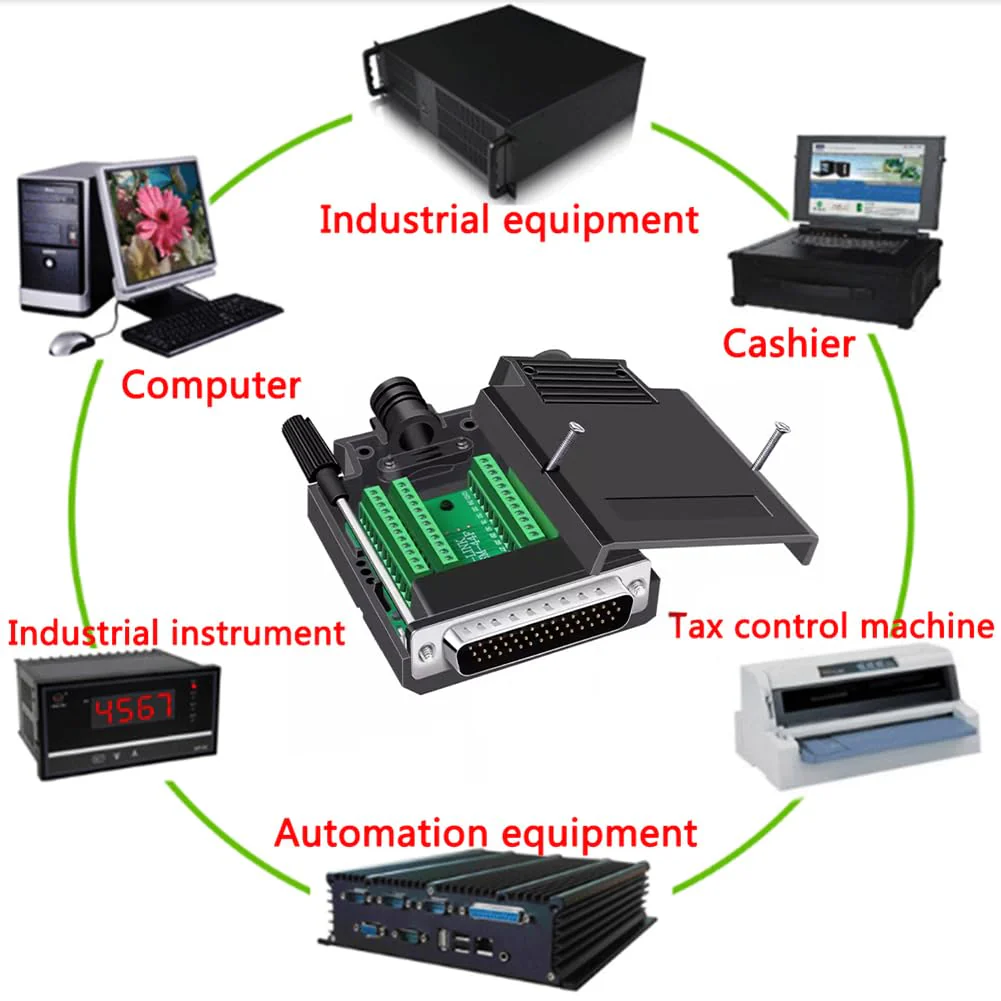

- WIDELY APPLICATIONS: The DB44 connector is commonly used in various applications such as industrial automation, data communications, and custom cabling scenarios. It allows for the connection of multiple wires or cables to enable data transfer, signal transmission, or power supply between different devices or components. Additionally, it can be found in older computer systems for parallel port connections, custom wiring setups, or legacy equipment interfaces.
More Images
DB44 Solderless Connector, Male RS232 D-SUB Serial to 44-pin Port Terminal Adapter Breakout Board with Case Long Bolts Tail Pipe
DB44 Solderless Connector, Male RS232 D-SUB Serial to 44-pin Port Terminal Adapter Breakout Board with Case Long Bolts Tail Pipe
These DB44 Male Solderless Connectors are used to terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life. Technical Specifications: Name: DB44 solderless module Plug type: male Accessories: housing, screw, card line buckle Connector material: pure copper plated joint Contact Material: Copper Housing material: environmentally friendly PP engineering materials Shell type: Screw lock Opening size (cable port): 10.5mm/0.41″ Terminal block diameter: 0.08'' / 2mm Pin Pitch: 2.54mm/0.1inch Cable Specification: 28-20 AWG/0.15-0.5mm2 Strip length: 5-6mm Torque: 0.2Nm (1.7Lb-In.) Rated voltage: 24V Rated current: 2A Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc. Size: 82.3 mm×57.2 mm×20.4 mm/ 3.24″×2.25″×0.80″ Package includes: 1 x DB44 Male Solderless Connectors 1x cable pressing plate 2x Screws 2x Long bolts 1x 5mm tail pipe 1x 6mm tail pipe 1x 7.5mm tail pipe 1x 8.5mm tail pipe
Product Features
- No Welding Required: 128 type environmental protection copper terminal design, Solderless design allows for quick and tool-free connection of wires or cables, saving time and effort during assembly.
- REDUCE ERRORS: The terminal block area is clearly marked making proper termination virtually foolproof.
- Compatibility: Works with a range of devices and equipment requiring multiple connections in a single interface.
- WIDELY APPLICATIONS: The DB44 connector is commonly used in various applications such as industrial automation, data communications, and custom cabling scenarios. It allows for the connection of multiple wires or cables to enable data transfer, signal transmission, or power supply between different devices or components. Additionally, it can be found in older computer systems for parallel port connections, custom wiring setups, or legacy equipment interfaces.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DB44 Solderless Connector, Male RS232 D-SUB Serial to 44-pin Port Terminal Adapter Breakout Board with Case Long Bolts Tail Pipe
These DB44 Male Solderless Connectors are used to terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life. Technical Specifications: Name: DB44 solderless module Plug type: male Accessories: housing, screw, card line buckle Connector material: pure copper plated joint Contact Material: Copper Housing material: environmentally friendly PP engineering materials Shell type: Screw lock Opening size (cable port): 10.5mm/0.41″ Terminal block diameter: 0.08'' / 2mm Pin Pitch: 2.54mm/0.1inch Cable Specification: 28-20 AWG/0.15-0.5mm2 Strip length: 5-6mm Torque: 0.2Nm (1.7Lb-In.) Rated voltage: 24V Rated current: 2A Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc. Size: 82.3 mm×57.2 mm×20.4 mm/ 3.24″×2.25″×0.80″ Package includes: 1 x DB44 Male Solderless Connectors 1x cable pressing plate 2x Screws 2x Long bolts 1x 5mm tail pipe 1x 6mm tail pipe 1x 7.5mm tail pipe 1x 8.5mm tail pipe
Product Features
- No Welding Required: 128 type environmental protection copper terminal design, Solderless design allows for quick and tool-free connection of wires or cables, saving time and effort during assembly.
- REDUCE ERRORS: The terminal block area is clearly marked making proper termination virtually foolproof.
- Compatibility: Works with a range of devices and equipment requiring multiple connections in a single interface.
- WIDELY APPLICATIONS: The DB44 connector is commonly used in various applications such as industrial automation, data communications, and custom cabling scenarios. It allows for the connection of multiple wires or cables to enable data transfer, signal transmission, or power supply between different devices or components. Additionally, it can be found in older computer systems for parallel port connections, custom wiring setups, or legacy equipment interfaces.
